New [UND-04] 4CH Hybrid H.265/H.264 5in1 (TVI, AHD, CVI, Analog CVBS and IP) HD DVR w/ HDMI VGA Output Mobile-APP Motion Real Time Recording

  • $ 9050


**PROMOTION PRICE NOW**



This is 4CH True-HD DVR page which can be working with TVI cameras/ AHD cameras/ CVI cameras/ Analog cameras/ IP cameras, if you need 4CH/16CH True-HD DVR, please go to:

8CH Hybrid HD DVRs

16CH Hybrid HD DVRs



Guard Viewer





**We use WD Purple Surveillance Hard Drive or Seagate Surveillance Hard Drive for our DVR!**


You can also choose if you would like to have pre-installed (1TB/ 2TB/ 3TB/ 4TB/ 6TB/ 8TB) hard drive with it from the pull-out list.

Description:

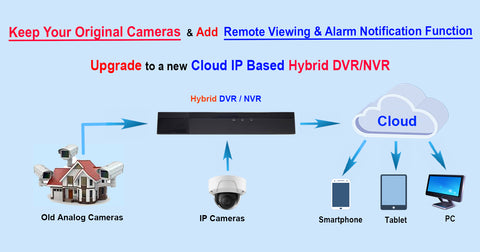

This 4CH Hybrid 5in1 (TVI, AHD, CVI, IP, Analog CVBS) H.265/H.264 True-HD DVR (Digital Video Recorder) is designed especially for CCTV system. It adopts high performance video processing chips and embedded Linux system. Meanwhile, it utilizes many most advanced technologies, such as standard H.265/H.264 with low bit rate, Dual stream, SATA interface, HDMI, VGA BNC output, and USB Mouse supported, IE browser supported with full remote control, mobile view (by phones), etc., which ensure its powerful functions and high stability. Due to these distinctive characteristics, it is widely used in banks, telecommunication, transportation, factories, warehouse, and irrigation and so on. Combination of 6 total Analog + IP cameras; Supports 4 Analog + 2 IP cameras, 3 Analog + 3 IP ... or to 0 Analog + 6 IP cameras by IP Address. DVR can only support Analog HD TVI & AHD up to 5MP, CVI up to 4MP, and IP camera up to 4MP resolution.




 DVR User Manual Download

 Quick Installation Guide for Mobile Phone Download

 Quick Installation Guide for CMS Software Download

 DVR Specification Download



 DVR Software Download

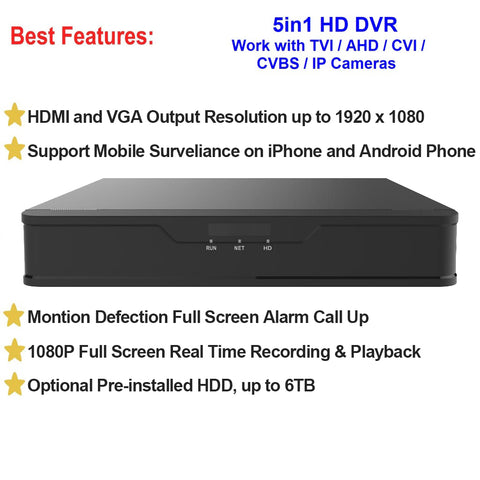

Product Features:

  • EXCEPTIONALLY SECURITY and PRIVACY via video encryption, strong password, and anti hacking protocols.
  • VIEW ANYWHERE, ANYTIME through Snapshot, SMS text, and Email notification to cell phones
  • CLARITY EVEN AT NIGHT with Full HD picture quality for solid day & night surveillance applications
  • USER FRIENDLY CLOUD APPs without port forwarding for both Android and iPhone
  • MOTION ACTIVATED full screen alarm call up notification with optional audible warning
  • EXISTING & NEW HD SURVEILLANCE SYSTEM compatibility with Multiple video formats including Full HD/TVI/AHD, SD/960H/composite video, and IP/network.
  • EXTRA VIEWING STATION via multiple video out connectors including: HDMI/VGA/IP network
  • CLEAR SETUP INSTRUCTION including QIG (Quick Installation Guide) for PC based VMS/CMS integration, cloud based cell phone APPs, and real time Snapshot alarm notification.
  • US Local Support

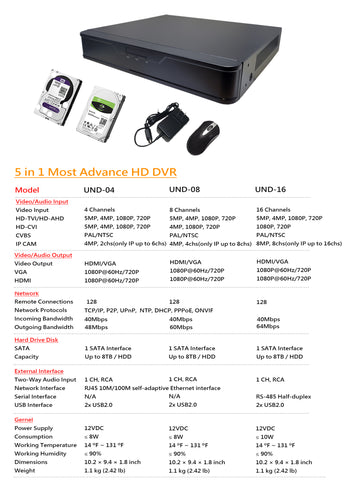

DVR Specification:




Feature Points:

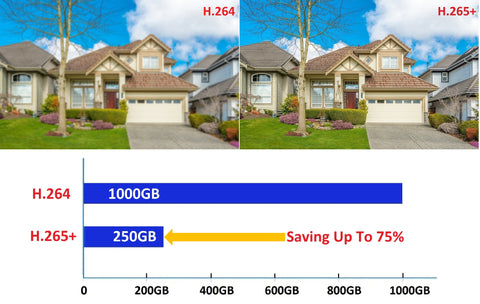

1. H.265/H.264 compression with low bit rate and better image quality

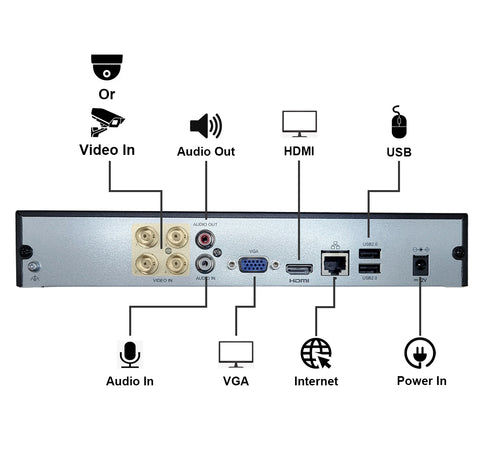

2. One HDMI Output Port and One VGA Output can up to 1920 x 1080, One Audio Input and one Audio output.

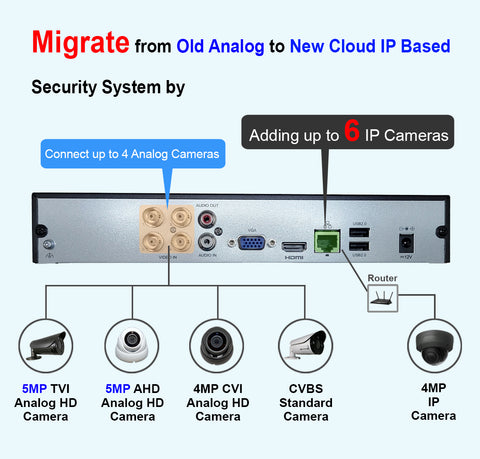

3. Combination of 6 total Analog + IP cameras; Supports 4 Analog + 2 IP cameras, 3 Analog + 3 IP ... or to 0 Analog + 6 IP cameras by IP Address.

4. DVR can only support Analog HD TVI & AHD up to 5MP, CVI up to 4MP, and IP camera up to 4MP resolution.

5. Up to 5MP Lite@12fps, 4MP Lite@15fps, 1080P Lite (960x1080)@15fps, 1080P@15fps, and 720P@30FPS recording Frame rate.

6. All 4 channels in High Resolution 1080P Recording and Display and with 1080P Video Playback.

7. USB Mouse to make full control

8. Support One SATA HDD to record for a longer time without any limitation; each HDD can up to 8TB storage for total 8TB storage

9. Support USB 2.0 devices, Easy backup with USB FLASH DRIVE and Network

10. Support schedule for motion detection, linked channels recording once motion triggered on certain channel

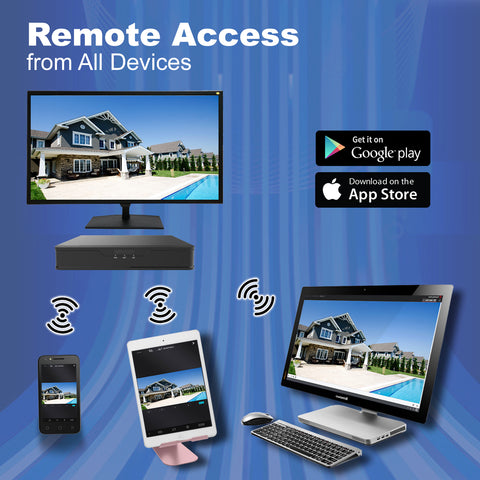

11. Support mobile surveillance on iphone & Android Smart Phone, 3G network available, CMS to manage multi devices on internet

12. Support 1 Year Manufacturer Warranty






What's in the box?

  • 4CH 5in1 DVR x 1, Hard Drive Cable Kit x 1, USB Mouse, CMS Software CD for Windows PC and Apple Mac, 12VDC/2A Power Supply, Quick Guide
