16CH 1080P 5in1 (TVI, AHD, CVI, IP, Analog CVBS) DVR w/ HDMI BNC VGA Output Mobile-APP Motion Real Time Recording

  • $ 21800



 FLASH SALE: PROMOTION PRICE for pre-installed 4TB/6TB/8TB/12TB NOW!

This is 16CH True-HD DVR page which can be working with TVI cameras/ AHD Cameras/ analog cameras/ IP cameras, if you are looking for 4CH/8CH True-HD DVR, please go to:

4CH True-HD DVRs

8CH True-HD DVRs





**We use WD Purple Surveillance Hard Drive or Seagate Surveillance Hard Drive for our DVRs!!!**



















you can also choose if you would like to have pre-installed (1TB/ 2TB/ 3TB/4TB/ 6TB/ 8TB/ 12TB) hard drive with it from the pull list. If you need more than 12TB Hard drive storage, please contact us for the price. Thank you!





Description:

This 16CH True-HD DVR (Digital Video Recorder) is designed especially for CCTV system. It adopts high performance video processing chips and embedded Linux system. Meanwhile, it utilizes many most advanced technologies, such as standard H.264 with low bit rate, Dual stream, SATA interface, HDMI, VGA BNC output, and USB Mouse supported, IE browser supported with full remote control, mobile view (by phones), etc., which ensure its powerful functions and high stability. Due to these distinctive characteristics, it is widely used in banks, telecommunication, transportation, factories, warehouse, and irrigation and so on.

 DVR User Manual Download

 Quick Installation Guide for Mobile Phone Download

 Quick Installation Guide for CMS Software Download

 DVR Specification Download



 DVR Software Download





Product Features:

  • EXCEPTIONALLY SECURITY and PRIVACY via video encryption, strong password, and anti-hacking protocols.
  • VIEW ANYWHERE, ANYTIME through Snapshot, SMS text, and Email notification to cell phones
  • CLARITY EVEN AT NIGHT with Full HD picture quality for solid day & night surveillance applications
  • USER FRIENDLY CLOUD APPs without port forwarding for both Android and iPhone
  • MOTION ACTIVATED full screen alarm call up notification with optional audible warning

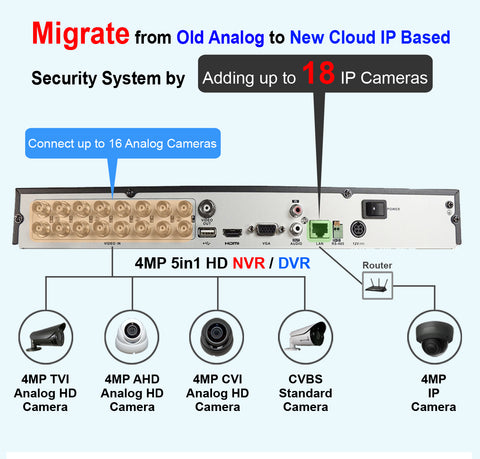

  • EXISTING & NEW HD SURVEILLANCE SYSTEM compatibility with Multiple video formats including Full HD/TVI/AHD, SD/960H/composite video, and IP/network.
  • EXTRA VIEWING STATION via multiple video out connectors including: HDMI/VGA/BNC/IP network
  • CLEAR SETUP INSTRUCTION including QIG (Quick Installation Guide) for PC based VMS/CMS integration, cloud based cell phone APPs, and real time Snapshot alarm notification.
  • US Local Support





DVR Specification:



Product Information:

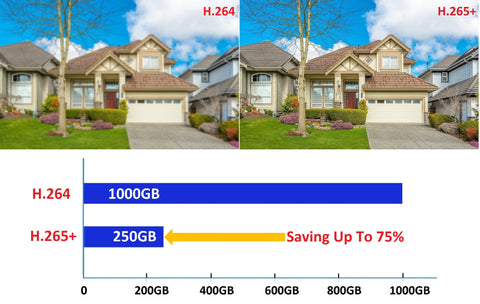

H.264 compression with low bit rate and better image quality

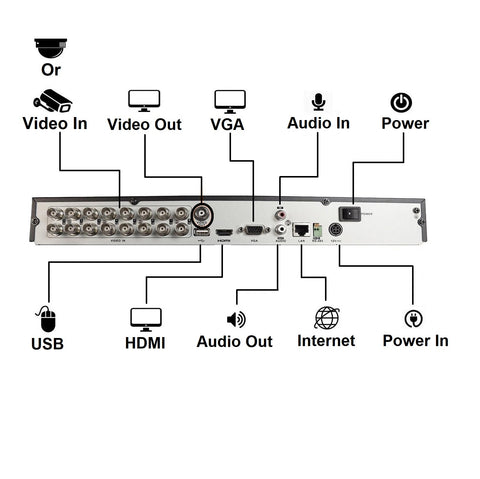

HDMI Output x1: resolution up to 4K, 3840x2160 ; VGA Output x1: resolution up to 2K, 2560 x 1440 ; CVBS (BNC) Output x1; Audio Input x1; Audio Output x1.

Up to 1080p@30fps recording with 1080P efficient mode on.

All 16 channels in High Resolution 1080P Recording and Display and with 1080P Video Playback.

USB Mouse to make full control

Support Two SATA HDD to record for a longer time without any limitation; each HDD can up to 6TB storage for total 12TB storage

Support USB 2.0 devices, Easy backup with USB FLASH DRIVE and Network

Support schedule for motion detection, linked channels recording once motion triggered on certain channel

Support PELCO-D and PELCO protocol for PTZ control

Support mobile surveillance on Iphone & Android Smart Phone, 3G network available, CMS to manage multi devices on internet

Support 3 Years Manufacturer Warranty





What's in the box?

  • 16CH 5in1 DVR x 1, Hard Drive Cable x 1, DVR Remote Control, USB Mouse, CMS Software CD for Windows PC and Apple Mac, 12VDC/3A Power Supply, User manual
