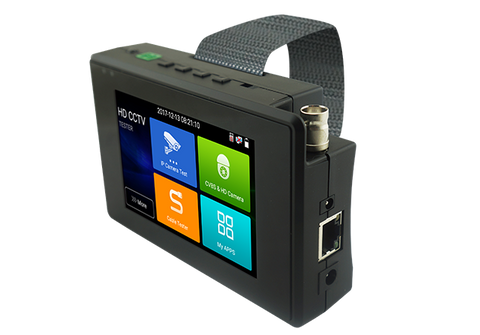

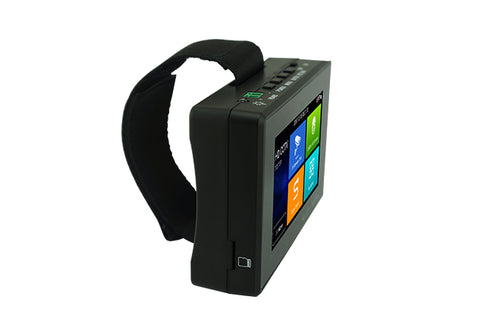

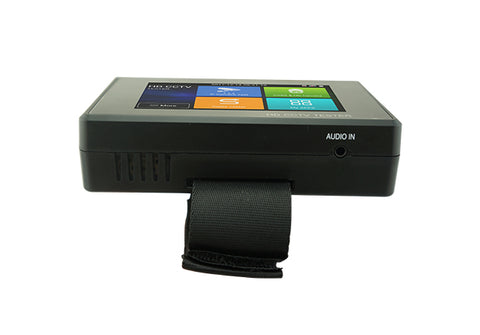

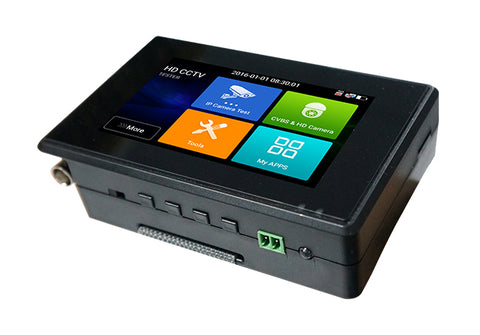

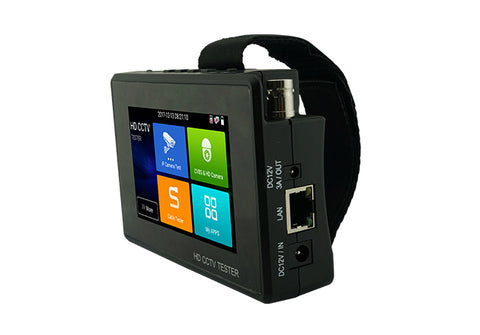

[NEW] 4 inch 5in1 touch screen camera tester support IP analog camera, standard analog camera(CVBS) & HD TVI, AHD, CVI camera up to 8MP

  • $ 16800




Features:

● 8MP TVI/ CVI/AHD, 4K H.265 IP, CVBS camera test

● H.265/H.264, 4K video display via mainstream

● Dahua, Hikvision, Axis etc ONVIF camera test

● Rapid ONVIF, auto view video and create testing report

● DC12V 3A, DC48V PoE power output

● Built in WIFI, create WIFI hotspot

● RJ45 cable TDR test,cable quality test

● Wrist design, portable and easier to carry

● 10/100/100M Ethernet, network state and traffic display



This 4 inch 5in1 touch screen camera tester is designed for maintenance and installation of IP analog, HD TVI, AHD, CVI and standard CVBS coaxial cameras as well as other security equipment. The 800*480 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

 CCTV system installation and maintenance

 Network cabling project installation and maintenance

 Dome camera, 4K H.265 IP camera testing

 Video transmission channel testing

 PTZ controller

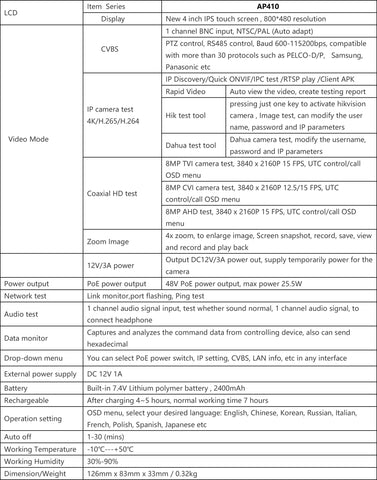

Specification download

 Model Number: TM-R1410



What's in the Box?

1) Tester

2) Adaptor DC12V/1A

3) Polymer lithium-ion battery (7.4V DC 2400mAh)

4) Toolbag / DC12V Power cable/BNC cable/ RS485 cable/ Audio cable
