[5VDT-2812W] 5 Megapixel 4in1 TVI/AHD/CVI/CVBS(960H) 2.8-12mm Lens Security Surveillance Dome Camera DWDR IR Cut OSD menu for Indoor Outdoor CCTV Home Office (White)

  • $ 4900
  • Save $ 8099

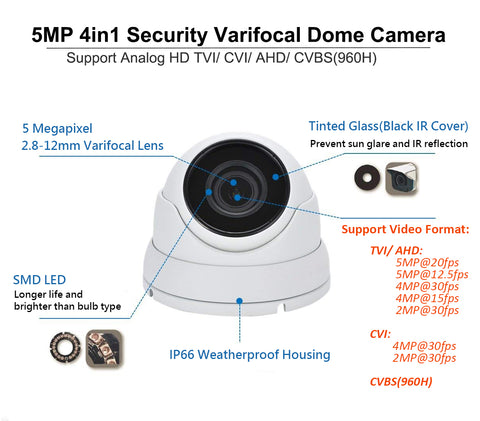

This 4 IN 1 professional IR dome security camera employs 1/2.5″ CMOS Image Sensor with 5 Megapixel Resolution and advanced circuit design. It adopts advanced image processing technology. The resolution is as high as 5MP, which ensures clear and bright pictures.  It has OSD Menu that can change the 4 different video output HD-TVI, HD-AHD, HD-CVI, and CVBS and adjust the video setting. It also has WDR function. Built-in 2.8-12mm varifocal lens, effectively extend your observation range. With 24 pcs IR infrared LEDs, it has 30 meters IR range, can change from color to black automatically and take clear picture during both day time and night time. The Smart IR function also enables it to catch clear face picture during night time. The camera has IP66 fully weatherproof rate and vandal proof metal housing. It’s easy to install. It can protect your office or home effectively.


Feature Points:

  • 4 IN 1 (HD-TVI, HD-AHD, HD-CVI, CVBS) HD technology produces 5 Megapixel Full-HD Video with Sharp and Detailed Images
  • 1/2.5″ CMOS Image Sensor with 5 Megapixel Resolution
  • 2.8-12 mm Varicoal Lens and Captures Images over Large Areas
  • 30 meters IR range; 24pcs IR infrared LEDs; Day/Night
  • IP66 weatherproof; Vandalproof
  • OSD Menu can change the 4 different video output (TVI, AHD, CVI, and CVBS) and adjust the video setting
  • DWDR (Digital Wide Dynamic Range) Function
  • Smart IR technology: Reduces Over-exposure of the IR LEDs at the Center of the Image
  • IR-Cut Filter: True day/night (ICR) Captures sharp, Clear Images in Low Light and at Night
  • Multi-Axis for Wall or Ceiling Mounting
  • Power Supply: DC 12V, 750mA (IR On), 120mA (IR Off)
  • Dimension: 131 × 93 mm
  • Applicable in Finance, Supermarkets, telecommunications, hotels, offices, corridors, stairs, garage and other indoor/outdoor monitoring sites.


Our 4in1 camera default setting is HD-TVI (5MP@12.5fps). If your system is not HD-TVI, please switch the camera to the same mode as your system does by using the joystick or OSD menu. You can find the instruction for how to switch to 4 different mode in the user manual. or you are always welcome to contact us if you have any questions or need help. Thank you.

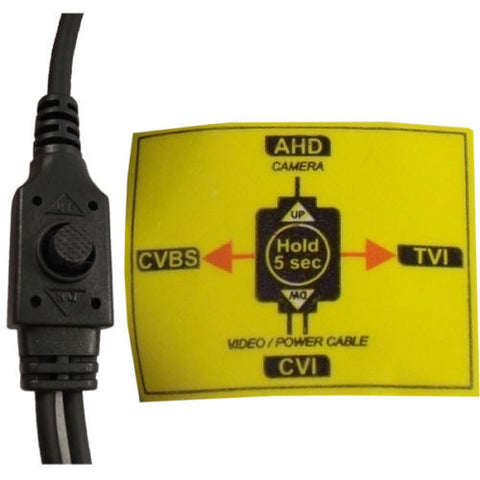

User Friendly Joystick configuration button for video format switching and OSD (On Screen Display) menu access




  • Push down on the joystick button to access the OSD menu to setup/fine tune the video performance and powerful function of the camera.
  • Switch the output signal format by the joystick button (within 10 sec of power on)
    • SD CVBS: Push the joystick button towards the left for 5 seconds then release
    • HD-TVI: Push the joystick button towards the right for 5 seconds then release
    • HD-AHD: Push the joystick button up for 5 seconds then release
    • HD-CVI: Push the joystick button down for 5 seconds then release


Model No.


Image Sensor

1/2.5" 5 Megapixel CMOS Sensor

Effective Pixels


Signal System



1080p/ 960H


Mini Illumination

0.001 Lux / F1.2


2.8 – 12mm Manual Zoom Lens



White Balance / Gain Control


S/N Ratio

More than 50 dB

Synchronous System


Video Output


IR Power On

Photodiode AUTO Control



Operation Temp

14°F~122°F (-10°C~50°C)

Storage Temp

14°F~140°F (-10°C~60°C)

Dimensions (mm)

131(W) x 93(H)


DC12V/ 750mA

IR Range

100 ft (30m) IR Range w/ 24pcs IR LEDs

Infrared Lamps

Night/Day ON/OFF


1.8 lbs (800g)

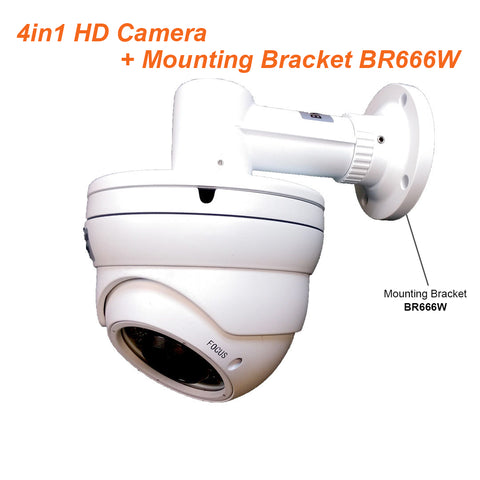

***If you are interested in the mounting bracket information for this camera, please check our Mounting Bracket BR666W page



What's in the box?

  • 5MP 4in1 True-HD IR Variable Lens Dome security camera; Screws.
  • (Optional) Mounting Bracket BR666W
